Duplicate constraints in Pyomo model


Introduction


Pyomo [1]  is a popular Python based modeling tool. In [2] a question is posed about a situation where a certain constraint takes more than 8 hours to generate. As we shall see, the reason is that extra indices are used.

A simple example


The constraint \[y_i = \sum_j x_{i,j} \>\>\>\forall i,j\] is really malformed. The extra \(\forall j\) is problematic. What does this mean? There are two obvious interpretations:

  1. One could say, this is just wrong. Below we will see that GAMS and AMPL follow this approach.
  2. We can also interpret this differently. Assume the inner \(j\) is scoped (i.e. local). Then we could read this as: repeat the constraint \(y_i = \sum_j x_{i,j}\), \(n\) times. Here \(n=|J|\) is the cardinality of set \(J\). This is what Pyomo is doing.

LaTeX: no checks

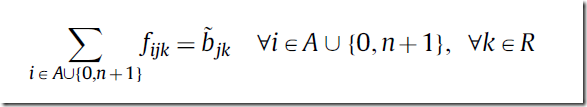

Journal papers are often typeset using LaTeX. Not much checking there, and as a result authors are free to write equations like [3]:



Here we have the same thing. We have a summation over \(i\) as well as a \(\forall i\).

GAMS: syntax error


The GAMS fragment corresponding to this example, shows GAMS will object to this construct:

  11  equation e(i,j);
  12  e(i,j)..  y(i) =e= sum(j, x(i,j));
****                          $125
**** 125  Set is under control already
  13

**** 1 ERROR(S)   0 WARNING(S)


AMPL: syntax error


AMPL also gives a syntax error. The message could be improved a bit:

D:\etc>ampl x.mod

d:x.mod, line 8 (offset 155):
        syntax error
context:  e{i in I, j in J}: Y[i] = sum{j  >>> in  <<< J} X[i,j];


Pyomo: create duplicate constraints


The Pyomo equivalent can look like:

def eqRule(m,i,j):
    return m.Y[i] == sum(m.X[i,j] for j in m.J);
model.Eq = Constraint(model.I,model.J,rule=eqRule)

This fragment is a bit more difficult to read, largely due to syntactic clutter. But in any case: Python and Pyomo accepts this constraint as written. To see what is generated, we can use

model.Eq.pprint()

This will show something like:

Eq : Size=6, Index=Eq_index, Active=True
    Key          : Lower : Body                                     : Upper : Active
    ('i1', 'j1') :   0.0 : Y[i1] - (X[i1,j1] + X[i1,j2] + X[i1,j3]) :   0.0 :   True
    ('i1', 'j2') :   0.0 : Y[i1] - (X[i1,j1] + X[i1,j2] + X[i1,j3]) :   0.0 :   True
    ('i1', 'j3') :   0.0 : Y[i1] - (X[i1,j1] + X[i1,j2] + X[i1,j3]) :   0.0 :   True
    ('i2', 'j1') :   0.0 : Y[i2] - (X[i2,j1] + X[i2,j2] + X[i2,j3]) :   0.0 :   True
    ('i2', 'j2') :   0.0 : Y[i2] - (X[i2,j1] + X[i2,j2] + X[i2,j3]) :   0.0 :   True
    ('i2', 'j3') :   0.0 : Y[i2] - (X[i2,j1] + X[i2,j2] + X[i2,j3]) :   0.0 :   True

We see for each \(i\) we have three duplicates. The way to fix this is to remove the function argument \(j\) from eqRule:

def eqRule(m,i):
    return m.Y[i] == sum(m.X[i,j] for j in m.J);
model.Eq = Constraint(model.I,rule=eqRule)

After this, model.Eq.pprint() produces

Eq : Size=2, Index=I, Active=True
    Key : Lower : Body                                     : Upper : Active
     i1 :   0.0 : Y[i1] - (X[i1,j3] + X[i1,j2] + X[i1,j1]) :   0.0 :   True
     i2 :   0.0 : Y[i2] - (X[i2,j3] + X[i2,j2] + X[i2,j1]) :   0.0 :   True

This looks much better.

The original problem


The constraint in the original question was:

def period_capacity_dept(m, e, j, t, dp):
    return sum(a[e, j, dp, t]*m.y[e,j,t] for (e,j) in model.EJ)<= K[dp,t] + m.R[t,dp]
model.period_capacity_dept = Constraint(E, J, T, DP, rule=period_capacity_dept)

Using the knowledge of the previous paragraph we know this should really be:

def period_capacity_dept(m, t, dp):
    return sum(a[e, j, dp, t]*m.y[e,j,t] for (e,j) in model.EJ)<= K[dp,t] + m.R[t,dp]
model.period_capacity_dept = Constraint(T, DP, rule=period_capacity_dept)

Pyomo mixes mathematical notation with programming. I think that is one of the reasons this bug is more difficult to see. In normal programming, adding an argument to a function has an obvious meaning. However in this case, adding e,j means in effect: \(\forall e,j\). If \(e\) and \(j\) belong to large sets, we can easily create a large number of duplicates.

Notes: Debugging Pyomo models


When debugging Pyomo models there are a few tricks to know about:

  • Have a small data set available. Debugging with large data sets is very difficult and plain unpleasant.
  • Use model.symbol.pprint()
  • Create an LP file of the model. When using the pyomo script, use the convert option (don't forget the --symbolic-solver-labels flag). From Python code, use model.write(filename, io_options={'symbolic_solver_labels': True}).
